Morton Equipment MDE Scorpion Excavator Grabs
MDE SCORPION EXCAVATOR GRAB

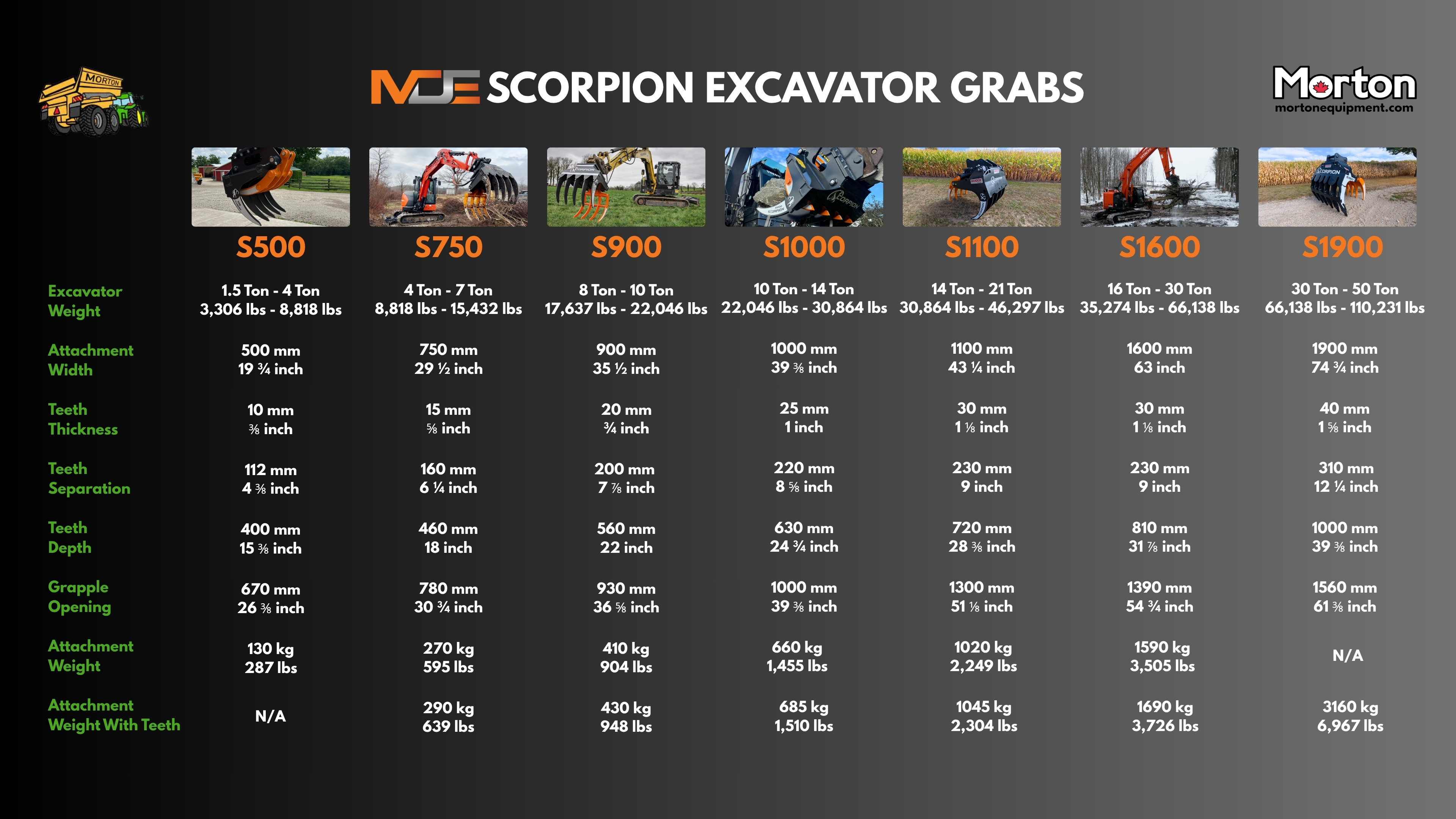

Scorpion Rake Grab Range
​
The MDE Scorpion Excavator Grab is engineered for strength and versatility, making it the ideal attachment for material handling, demolition, and forestry applications. Designed for maximum grip and control, it ensures secure handling of logs, rocks, and debris with minimal effort.
​
Built from high-strength materials and designed for heavy-duty performance, the Scorpion Grab is the ultimate solution for operators who demand reliability and efficiency.
Key Features
​
-
Suitable for excavators from 1.5T to 35T
-
Securely grips rocks, logs, scrap & debris
-
Hardox® wear plate for extreme longevity
-
Hydraulic control for precise handling
-
Perfect for forestry, demo & clearance
-
Quick & easy to set up with easy grease points
Application Areas
​
-
Ideal for breaking down structures, feeding mulchers, or loading trailers on-site.
-
Handles clearing, trimming, and tidying across both private and commercial land.
-
Supports maintenance around pipelines, power lines, and roadside zones.
-
Perfect for sorting and moving materials in recycling or waste management plants.
-
Powerful enough to handle heavy-duty land clearing and vegetation control.
​
.jpg)

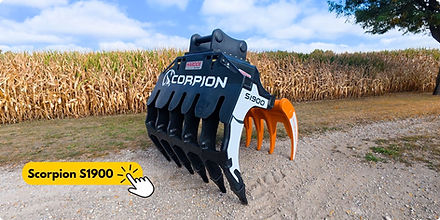

MDE Scorpion S1900 Excavator Grab
• Excavator Weight 30 Ton - 50 Ton
• Attachment Width 1900 mm
• Teeth Thickness 40 mm
• Teeth Separation 310 mm
• Teeth Depth 1000 mm
• Grapple Opening 1560 mm
• Attachment Weight N/A
.png)
MDE Scorpion S1600 Excavator Grab
• Excavator Weight 16 Ton - 30 Ton
• Attachment Width 1600 mm
• Teeth Thickness 30 mm
• Teeth Separation 230 mm
• Teeth Depth 810 mm
• Grapple Opening 1390 mm
• Attachment Weight 1590 kg
.png)
MDE Scorpion S1100 Excavator Grab
• Excavator Weight 14 Ton - 21 Ton
• Attachment Width 1100 mm
• Teeth Thickness 30 mm
• Teeth Separation 230 mm
• Teeth Depth 720 mm
• Grapple Opening 1300 mm
• Attachment Weight 1020 kg
MDE Scorpion S1000 Excavator Grab
• Excavator Weight 10 Ton - 14 Ton
• Attachment Width 1000 mm
• Teeth Thickness 25 mm
• Teeth Separation 220 mm
• Teeth Depth 630 mm
• Grapple Opening 1000 mm
• Attachment Weight 660 kg
MDE Scorpion S900 Excavator Grab
• Excavator Weight 8 Ton - 10 Ton
• Attachment Width 900 mm
• Teeth Thickness 20 mm
• Teeth Separation 200 mm
• Teeth Depth 560 mm
• Grapple Opening 930 mm
• Attachment Weight 410 kg
.png)
MDE Scorpion S750 Excavator Grab
• Excavator Weight 4 Ton - 7 Ton
• Attachment Width 750 mm
• Teeth Thickness 15 mm
• Teeth Separation 160 mm
• Teeth Depth 460 mm
• Grapple Opening 780 mm
• Attachment Weight 270 kg
MDE Scorpion S500 Excavator Grab
• Excavator Weight 1.5 Ton - 4 Ton
• Attachment Width 500 mm
• Teeth Thickness 10 mm
• Teeth Separation 112 mm
• Teeth Depth 400 mm
• Grapple Opening 670 mm
• Attachment Weight 130 kg
