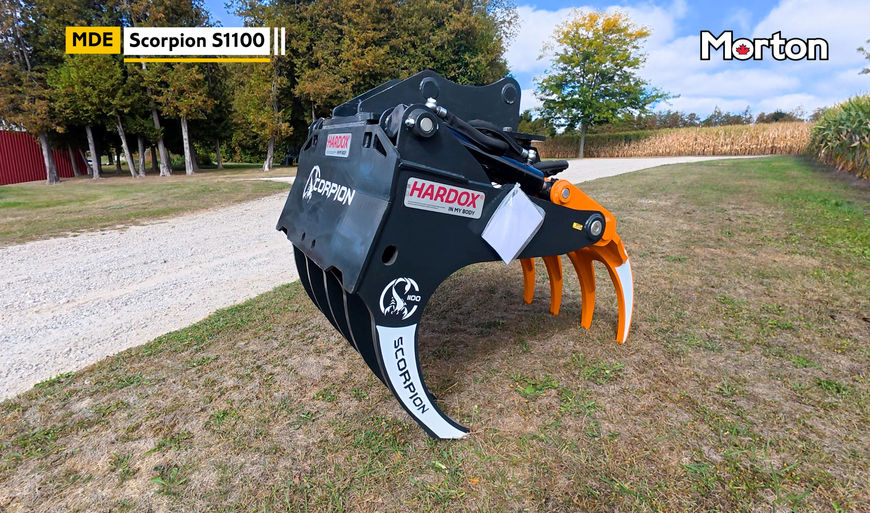

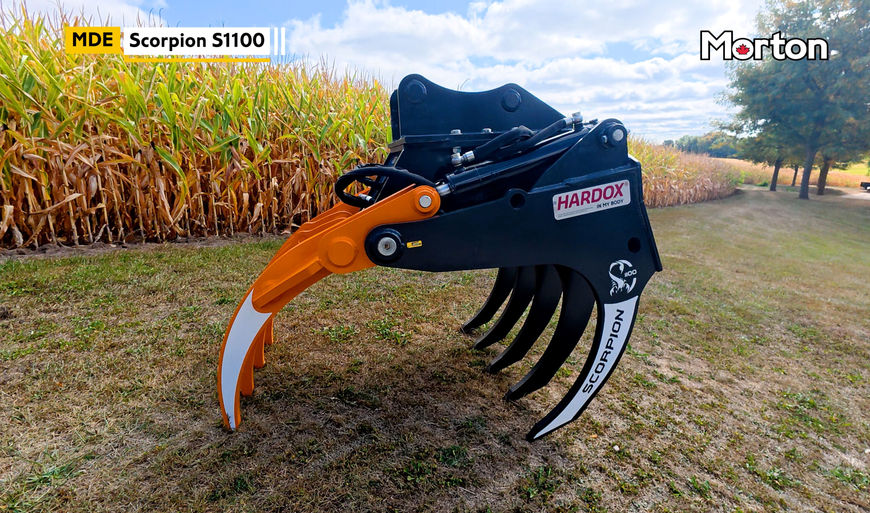

Morton Equipment MDE Scorpion S1100 Excavator Grab

MDE Scorpion S1100 Excavator Grabs

​

With a robust build and superior gripping force, the Scorpion S1100 is engineered for heavy-duty material handling and demolition projects.

​

The Scorpion S1100 Excavator Grab is a heavy-duty attachment designed for large excavators, delivering exceptional grip, control, and durability. Built from Hardox® steel, it is engineered for high-performance material handling, demolition, forestry, and land-clearing applications. With its powerful hydraulic system and reinforced structure, the S1100 is built to tackle the toughest jobs with ease.

​

• Constructed Entirely from Hardox® – Built for superior strength and durability.
• Convenient Greasing Points – Designed for easy maintenance and long-lasting performance.
• High-Performance Hydraulic Cylinders – Delivering maximum power and efficiency.
• Fast & Simple Setup – Easily connects to auxiliary and hammer pipes for quick operation.

​

Scorpion S1100 Applications
• Demolition & Material Handling – Ideal for demolition projects, loading trailers, and feeding mulchers and grinders.
• Forestry & Land Clearing – Perfect for picking up trees, pulling roots, and managing overgrown areas.
• Agricultural Applications – Efficiently clears farmland, removing stumps, boulders, and unwanted vegetation.
• Recycling & Waste Management – Designed for separating materials in recycling plants and waste facilities.
• Utilities & Infrastructure Maintenance – Assists in clearing land and maintaining roadside, railway, and canal areas.
• Landscaping & Site Preparation – Suitable for both private and commercial landscape maintenance projects.

​

Why Buy a Scorpion Grab?
1. Bolt on replaceable teeth — reduce wear and tear, easily maintain the grab and keep downtime to a minimum.
2. Built Tough, Backed by Hardox® — MDE is Hardox® In My Body certified, ensuring unmatched strength, durability, and performance in every product.
3. Excavator rated, triple sealed hydraulic cylinders — superior protection from contamination, reduced maintenance, and reliable power in the harshest conditions.
4. Bolt On Replaceable Hitch — Easily swap hitches to match various machines.
5. Proven durability — over a decade of production and real-world performance.
6. Serviceable design — all key components are replaceable, including bushings, sleeves, pins, and blade, all with easy-access greasing.
7. Quick and easy to set up — auxiliary pipes / hammer lines.
8. Proven durability — MDE has over a decade of production and real-world experience.
9. Manufactured in Northern Ireland, by MDE Machinery.

​

SPECIFICATIONS

• Excavator Weight         14 Ton - 21 Ton / 30,864 lbs - 46,297 lbs

• Attachment Width       1100 mm / 43 ¼ inch

• Teeth Thickness           30 mm / 1 ⅛ inch

• Teeth Separation          240 mm / 9 inch

• Teeth Depth                  720 mm / 28 ⅜ inch

• Grapple Opening         1100 mm / 43 inch

• Attachment Weight     1020 kg / 1,984 lbs

​

$21.000 CAD
