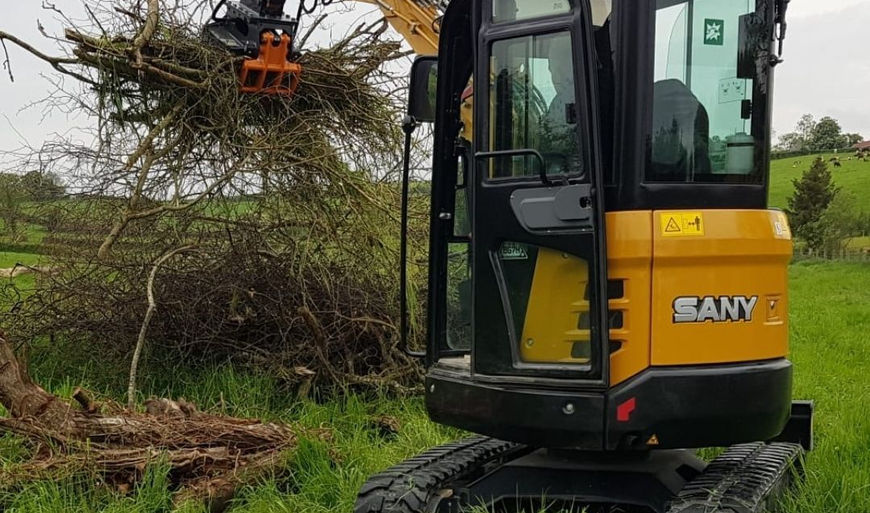

Morton Equipment MDE Scorpion S500 Excavator Grab

MDE Scorpion S500 Excavator Grabs

​

Compact yet powerful, the Scorpion S500 is designed for precision handling of smaller materials, making it perfect for tight spaces and lighter excavators.

​

The Scorpion S500 Excavator Grab is a compact yet powerful attachment, designed for precision material handling. Ideal for smaller excavators, it delivers exceptional grip and control, making it perfect for forestry, landscaping, and demolition tasks. Built with high-strength Hardox® steel, the S500 offers durability and reliability in every application.

​

• Constructed Entirely from Hardox® – Built for superior strength and durability.
• Convenient Greasing Points – Designed for easy maintenance and long-lasting performance.
• High-Performance Hydraulic Cylinders – Delivering maximum power and efficiency.
• Fast & Simple Setup – Easily connects to auxiliary and hammer pipes for quick operation.

​

Scorpion S500 Applications
• Demolition & Material Handling – Ideal for demolition projects, loading trailers, and feeding mulchers and grinders.
• Forestry & Land Clearing – Perfect for picking up trees, pulling roots, and managing overgrown areas.
• Agricultural Applications – Efficiently clears farmland, removing stumps, boulders, and unwanted vegetation.
• Recycling & Waste Management – Designed for separating materials in recycling plants and waste facilities.
• Utilities & Infrastructure Maintenance – Assists in clearing land and maintaining roadside, railway, and canal areas.
• Landscaping & Site Preparation – Suitable for both private and commercial landscape maintenance projects.

​

Why Buy a Scorpion Grab?
1. Bolt on replaceable teeth — reduce wear and tear, easily maintain the grab and keep downtime to a minimum.
2. Built Tough, Backed by Hardox® — MDE is Hardox® In My Body certified, ensuring unmatched strength, durability, and performance in every product.
3. Excavator rated, triple sealed hydraulic cylinders — superior protection from contamination, reduced maintenance, and reliable power in the harshest conditions.
4. Bolt On Replaceable Hitch — Easily swap hitches to match various machines.
5. Proven durability — over a decade of production and real-world performance.
6. Serviceable design — all key components are replaceable, including bushings, sleeves, pins, and blade, all with easy-access greasing.
7. Quick and easy to set up — auxiliary pipes / hammer lines.
8. Proven durability — MDE has over a decade of production and real-world experience.
9. Manufactured in Northern Ireland, by MDE Machinery.

​

SPECIFICATIONS

• Excavator Weight         1.5 Ton - 4 Ton / 3,306 lbs - 8,818 lbs

• Attachment Width       500 mm / 19 ¾ inch

• Teeth Thickness           10 mm / ⅜ inch

• Teeth Separation         125 mm / 4 ⅜ inch

• Teeth Depth                 400 mm / 15 ⅜ inch

• Grapple Opening        670 mm / 26 ⅜ inch

• Attachment Weight    125 kg / 308 lbs

​

$7000 CAD
