Morton Equipment MDE Scorpion Excavator Grabs

Morton Equipment MDE Scorpion S1600 Excavator-Grab.png

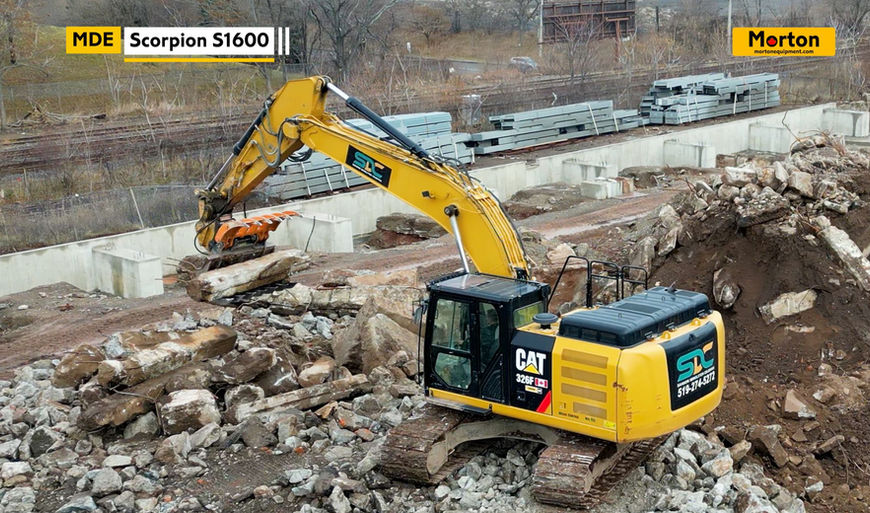

MDE Scorpion S1600 Excavator Grab

Morton Equipment MDE Machinery.png

MDE Scorpion S1600 Excavator Grab



Robust, Well Designed, and Easily Controlled



The Scorpion S1600 Excavator Grab was the first and largest in the Scorpion range. With a heavy duty hardox chassis and 30mm hardox teeth, the Scorpion S1600 is not short on build strength. Clamping force is not an issue with this Scorpion, as it features two massive hydraulic cylinders. With powerful cylinders and an impressive 1390mm jaw opening width, the Scorpion makes it easy to clamp onto boulders or stumps and take them away. This Scorpion is ideal for ripping through forestry roots, picking out boulders, and loading materials. The Scorpion S1600 model is no question the Scorpion King.



With a purposefully built heavy chassis, this model is one of the most heavy duty excavators grabs you’ll come across, weighing 1487kg. This heavy design ensures that it is stronger, more resilient and robust than anything else in its market category. The Scorpion is simple to use and setup, connect the grab to the excavators hammer lines and you will have full control of the Scorpions powerful hydraulic cylinders.



Like all MDE Scorpions, the Scorpion S1600 Excavator Grab comes with hardox chassis and teeth. Equipped with two powerful hydraulic cylinders. A key feature of the Scorpion design is the fixed position of one side of the grapple, as this allows the excavator operator to use it like a bucket, and clamp with the other grapple. Another important feature is the bolt on hitch allowing you to switch the Excavator Grab onto other Excavators.



FEATURES

  • Hardox® Teeth

  • Bolt On Hitch

  • Hardox® Body



APPLICATION AREAS

  • Demolition projects, loading trailers, and feeding mulchers

  • Private and commercial landscape maintenance

  • Suitable for the clearing of agricultural land

  • Recycling plants separating material

  • Maintenance work in the utilities sector

  • Picking up trees and pulling roots

  • Clearing land with boulders or stumps



SPECIFICATIONS

  • Excavators                           16t – 30t

  • Width                                    5.2ft / 1600mm

  • Teeth Thickness                 30mm   / 1.2”

  • Teeth Separation              230mm / 9”

  • Teeth Depth                        810mm / 32”

  • Grapple Opening              1390mm / 55”

  • Weight                                  1487kg / 3280 lb



$26.000 CAD

Morton Equipment MDE Scorpion Excavator Grab.png

Morton Equipment
515546 11th Line  Woodstock

Ontario Canada N4S 7V7
+1 (519) 617-0934

morton_neill@hotmail.com


CONTACT FOR MORE DETAILS
