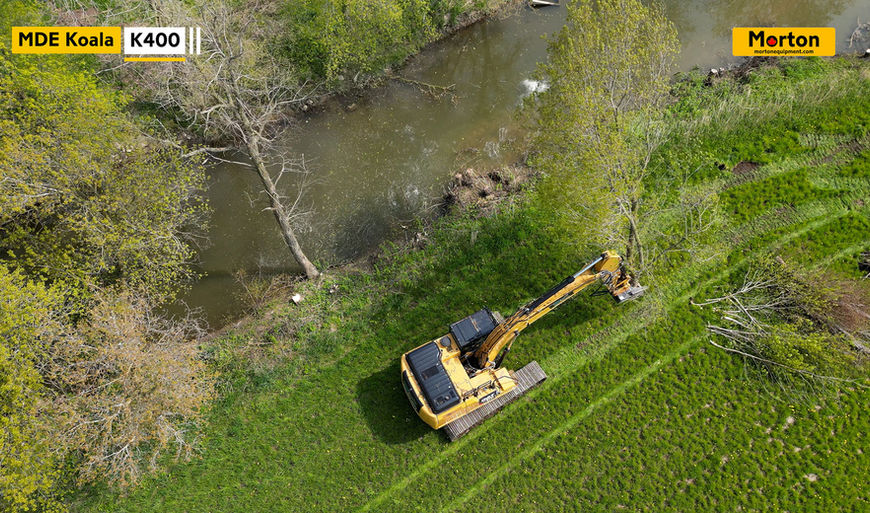

Morton Equipment MDE Koala K400 Tree Shear

MDE Koala K400 Excavator Tree Shears
MDE Koala 400 Excavator Tree Shears
The Koala 400 Tree Shear is the original and most robust model in the Koala range, designed for large excavators tackling the toughest forestry and land-clearing challenges. Built with unmatched strength and cutting power, it is the ultimate attachment for demanding environments.
• High-Strength Build: Constructed with an ultra-heavy-duty Hardox® chassis and reinforced arms to handle extreme workloads and demanding environments.
• Replaceable Blade: Features MDE's advanced replaceable wing-style blade, ensuring quick maintenance and an extended operational lifespan.
• Hydraulic Efficiency: Delivers exceptional cutting power through seamless integration with excavator hammer lines, making it ideal for large-scale projects.
• Safe Operation: Engineered for operator safety, providing controlled cutting and precise placement of even the largest trees.
Koala 400 Applications
• Handling large trees, dense vegetation, and overgrown forestry.
• Heavy-duty forestry operations, including tree felling and harvesting.
• Utility sector maintenance for roadside, powerline, and canal clearance.
• Preparing large areas of agricultural land for planting or development.
• Managing landscapes for industrial, commercial, or public projects.
• Clearing infrastructure areas such as railways, highways, and construction sites.
Why Buy a Koala Tree Shear?
1. Bolt on replaceable blade — change it out fast if bent or worn, keep downtime to a minimum.
2. Built Tough, Backed by Hardox® — MDE is Hardox® In My Body certified, ensuring unmatched strength, durability, and performance in every product.
3. Excavator rated, triple sealed hydraulic cylinders — superior protection from contamination, reduced maintenance, and reliable power in the harshest conditions.
4. Bolt On Replaceable Hitch — Easily swap hitches to match various machines.
5. Serviceable design — all key components are replaceable, including bushings, sleeves, pins, and blade, all with easy-access greasing.
6. Proven durability — MDE has over a decade of production and real-world experience.
7. Manufactured in Northern Ireland, by MDE Machinery.
Features
-
Replaceable blade
-
Bolt on Hitch
-
Hardox Body
Specifications
-
Excavators 12 Ton - 36 Ton / 26,455 lbs - 79,336 lbs
-
Weight 840 kg / 1852 lbs
-
Cut Capacity 400 mm / 16 inch
-
Oil Pressure 250 bar - 350 bar
-
Hydraulic Flow 80L - 120L / 17.59 gal - 26.39 gal
-
Width 1220 mm / 48 inch
-
Length 1400 mm / 55⅛ inch
-
Height 740 mm / 29⅛ inch
-
Mounting Platform Excavators, Telehandlers, Skid Steers, Cranes
OPTIONAL EXTRAS
-
55° Tilt
The Tilt Rotator for the Koala Tree Shear rotates 55° left and right. This optional extra will allow the operator to
-
Cut overhanging branches easier
-
Manoeuvre the tree shear in uneven terrain
-
Cut the tree as low as possible
-
Stack tree in piles neatly
$21.000 CAD
