Morton Equipment MDE SX Excavator Grapple
MDE EXCAVATOR GRAPPLE
SX Range
​
MDE Excavator Grapples are built for power, precision, and durability, making them the ultimate attachments for material handling, demolition, and forestry applications.
​
Designed with high-strength HARDOX® steel and advanced hydraulic control, our grapples deliver exceptional gripping force and reliability in the toughest conditions.
Key Features
​
-
Suitable for excavators from 1.5T to 35T
-
Securely grips rocks, logs, scrap & debris
-
Hardox® wear plate for extreme longevity
-
Hydraulic control for precise handling
-
Perfect for forestry, demo & clearance
-
Optional saw unit for cutting
Application Areas
​
-
Ideal for felling, handling, and processing trees in managed woodland and logging sites.
-
Efficiently remove trees, brush, and debris for construction, development, or agricultural use.
-
Safely manage fallen trees and damaged material after storms, floods, or wildfires.
-
Maintain clear lines around power routes, pipelines, and roadside access zones.
​
.png)

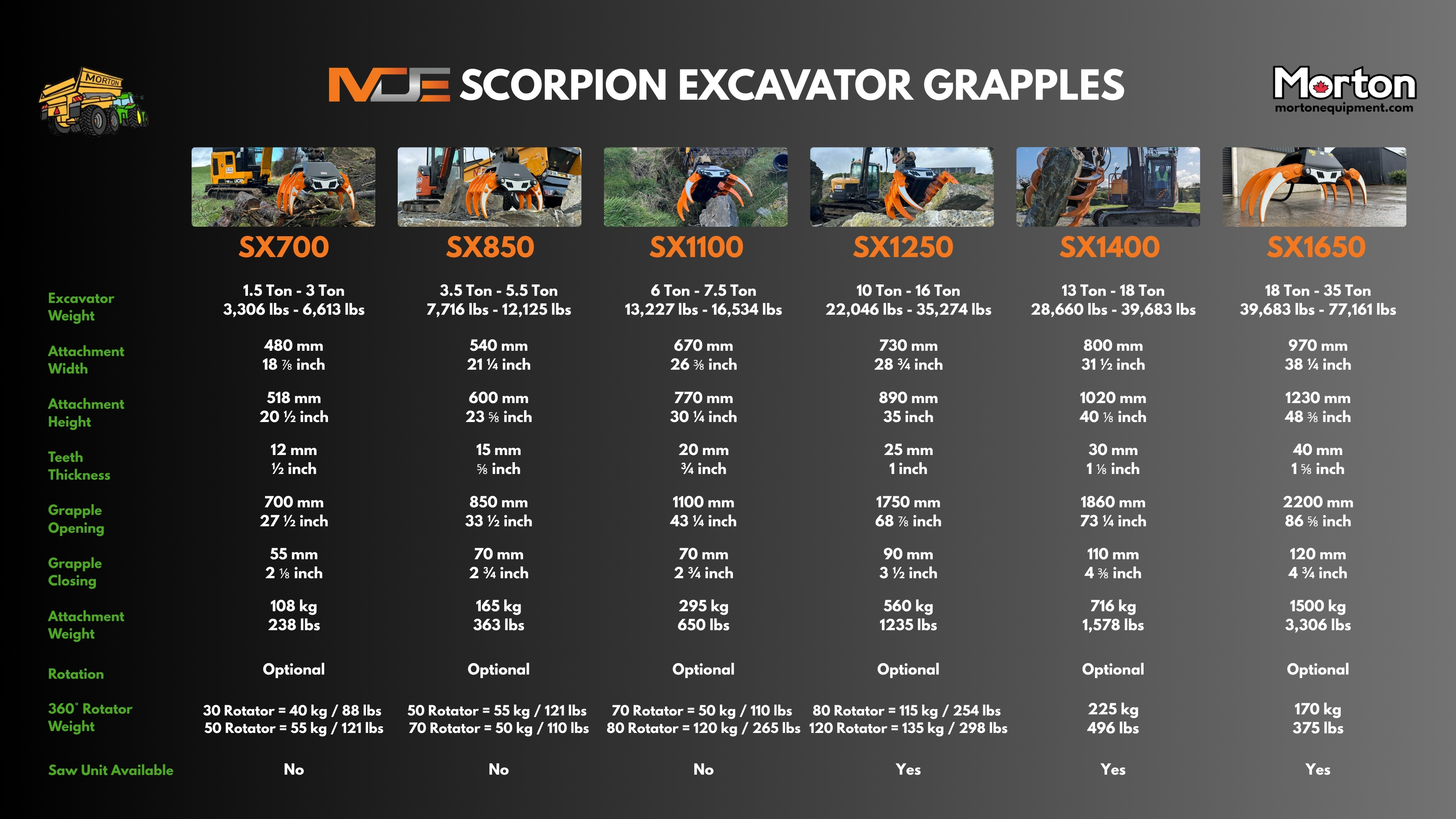

MDE Excavator Grapple SX1650
• Excavator Weight 18 Ton - 35 Ton
• Attachment Width 970 mm
• Attachment Height 1230 mm
• Teeth Thickness 40 mm
• Grapple Opening 2200 mm
• Grapple Closing 120 mm
• Attachment Weight 1500 kg
MDE Excavator Grapple SX1400
• Excavator Weight 13 Ton – 18 Ton
• Attachment Width 800 mm
• Attachment Height 1020 mm
• Teeth Thickness 30 mm
• Grapple Opening 1860 mm
• Grapple Closing 110 mm
• Attachment Weight 716 kg
MDE Excavator Grapple SX1250
• Excavator Weight 10 Ton – 16 Ton
• Attachment Width 730 mm
• Attachment Height 890 mm
• Teeth Thickness 25 mm
• Grapple Opening 1750 mm
• Grapple Closing 90 mm
• Attachment Weight 560 kg
MDE Excavator Grapple SX1100
• Excavator Weight 6 Ton – 7.5 Ton
• Attachment Width 670 mm
• Attachment Height 770 mm
• Teeth Thickness 20 mm
• Grapple Opening 1100 mm
• Grapple Closing 70 mm
• Attachment Weight 295 kg
.png)
MDE Excavator Grapple SX850
• Excavator Weight 3.5 Ton – 5.5 Ton
• Attachment Width 540 mm
• Attachment Height 600 mm
• Teeth Thickness 15 mm
• Grapple Opening 850 mm
• Grapple Closing 70 mm
• Attachment Weight 165 kg
MDE Excavator Grapple SX700
• Excavator Weight 1.5 Ton – 3 Ton
• Attachment Width 480 mm
• Attachment Height 518 mm
• Teeth Thickness 12 mm
• Grapple Opening 700 mm
• Grapple Closing 55 mm
• Attachment Weight 108 kg
