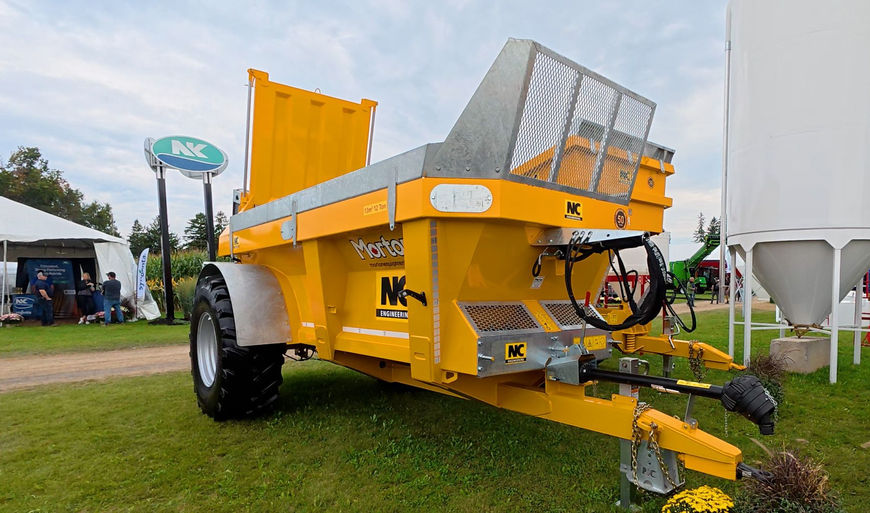

Morton Equipment NC 12 Ton Manure Spreader

NC Rear Discharge Manure Spreader Morton Equipment

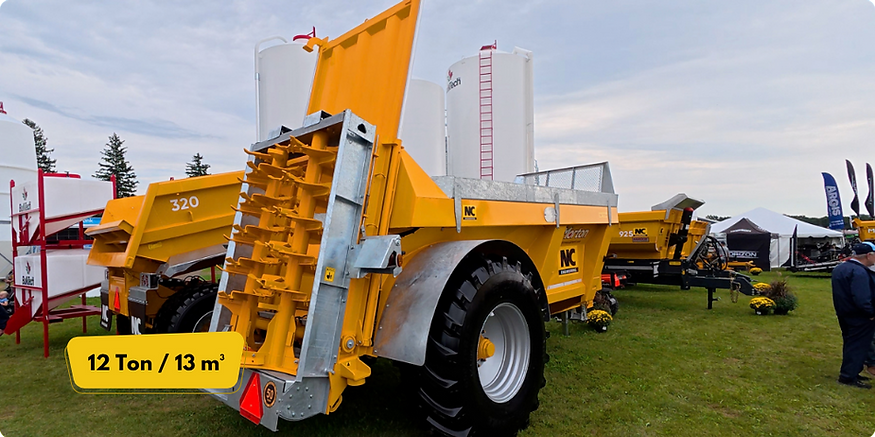

NC 12 Ton / 13 m³ Manure Spreader

NC Rear Discharge Manure Spreader | 12 Ton / 13 m³ Heavy-Duty Spreader

FEATURES
• Heavy-duty monocoque body construction
• Variable-speed floor chains (electric control option)
• 4 no-stress-relieved 14×50 chains on 11–13 m³ models
• Floor chains protected by a cross-line relief valve
• Galvanized quick-attach floor slats (no welding to the chain)

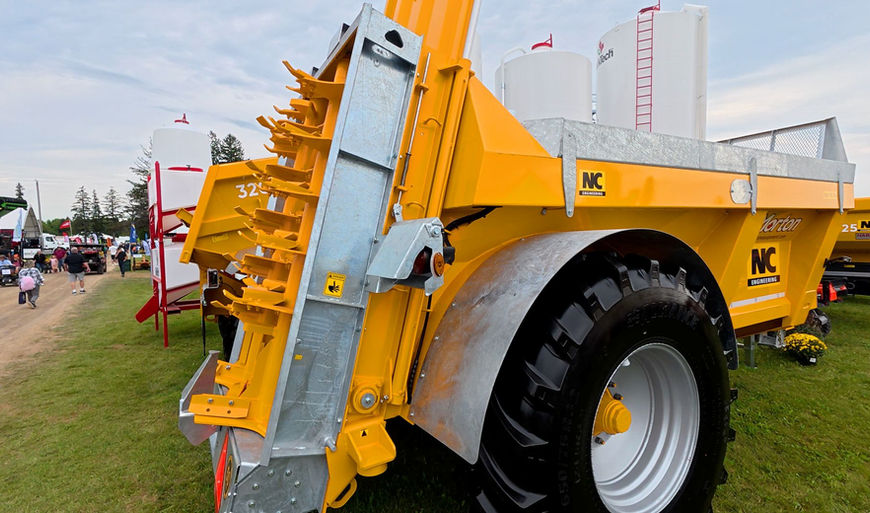

• Galvanized rear vertical auger frame

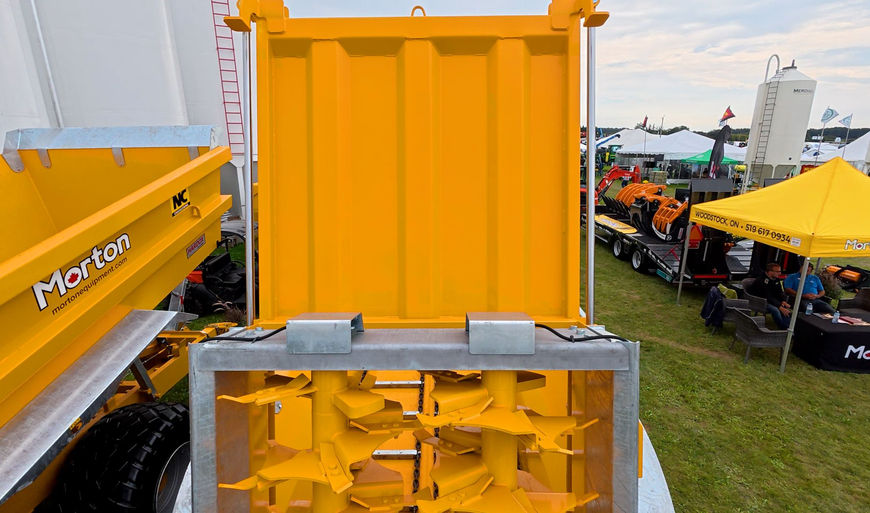

• Dynamically balanced twin vertical rotors with reversible Hardox blades
• 10 mm thick Hardox auger flights
• Heavy-duty 10-stud axles with hydraulically operated brakes (optional air brakes)
• Full road lighting (with automatic covers over lights when spreading with slurry door fitted)
• Remote greasing for drive shaft and auger bearings
• Hydraulically operated slurry door
• Wide-angle PTO with shear bolt
• Slip clutch and overrun at gearbox input shaft
• SISP gearbox
• Heavy-duty EN16 towing eye
• Heavy-duty 150 mm beam
• Ratchet-style handbrake
• Galvanized PTO shaft stand
• Galvanized drawbar boot
• Galvanized mudguards
• Drawbar boot storage
• Reflective tape
• Two-pack paint finish

SPECS
• Rated Load Carrying Capacity: 12 Ton / 26,455 lb
• Capacity (Heaped): 13 m³ / 459 cu ft
• Spread Width: Up to 16 m / 52.5 ft
• Axle Beam Size: 150 mm / 5.9 in
• Brake Size: 420 × 180 mm / 16.5 × 7.1 in
• A (Width): 2990 mm / 9’ 9¾”
• Tyre Size: 650/75R32 / 650/75R32
• Body Size (L × W × H, Internal): 5350 × 1500 × 1110 mm / 17’ 6.6” × 4’ 11.1” × 3’ 7.7”
• B (Side Loading Height): 2200 mm / 7’ 2.6”
• Floor Drive: Hydraulic
• Floor Drive Control: Hydraulic Variable c/w Reverse (Electric Option)
• Floor Chain Size: 14 × 50 mm / 0.55 × 1.97 in
• Number of Floor Chains: 4
• PTO Input Speed: 1000 rpm / 1000 rpm
• Unladen Weight: Approx. 5500 kg / Approx. 12,125 lb
